| 产品特性：JBL | 品牌：JBL | 型号：JBL PD6200 |
| 上市时间：2022 | 产地：中国大陆 | 货源类别：现货 |
| 类型：监听音箱 | 适用人群：通用 | 接口类型：光纤 |
| 连接方式：3.5MM音频插口 | 频响范围：100HZ-20KHZ | 输出功率：1400W |
| 声道：2.1 | 供电方式：需外配电池 | 播放时长：8小时 |
| 外壳材质：木 | 箱体材质：金属 | 外观尺寸：黑色 |
| 产品重量：69KG | 加印LOGO：不可以 | 最快出货时间：4-7天 |
| 是否支持一件代发：支持 | 证书类型：3C认证 | 证书编号：202034878965371238 |
| 发货物流公司：EMS、 德邦物流 | 物流服务：送货上门 | 售后服务：全国联保 |
| 发票：提供发票 | 功能：NFC功能 | 显示屏：无 |
| 是否有收音功能：否 | 播放格式：MP3 | 音箱调节方式：按键 |
| 是否支持APP：否 |

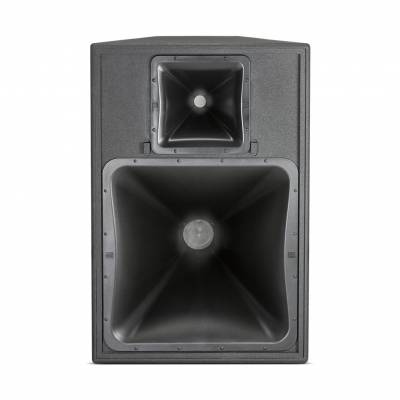

JBL PD6200中高频音箱200mm8寸双线圈CMCD驱动器
Precision Directivity Full Range Three-Way Loudspeakers
The PD6322 Precision Directivity full range, three-way loudspeakers are designed for applications requiring high output sensitivity with excellent pattern control. They can be utilized standalone in demanding music or speech systems where low frequency extension to 40 Hz is required.
Features
Two high power 300 mm (12 in) transducers in a compact slot-loaded configuration for low frequency extension to 40 Hz.
High power CMCD? Cone Midrange Compression Driver provides high sensitivity and high continuous SPL capability along with low distortion, extended bandwidth and improved phase coherence.
Large format neodymium HF driver provides clear, intelligible high frequency projection.
Large PT? Progressive Transition? waveguides provide consistent pattern control, low distortion at high SPL levels and smooth frequency response.
Rotatable mid and high frequency waveguides allow either horizontal or vertical cabinet orientation.
Sophisticated, steep-slope passive mid high crossover network with switchable tri-amp/bi-amp crossover modes.
| Frequency Range | 41 Hz to 17 kHz (-10 dB) |
| Frequency Response | 49 Hz to 15 kHz ( ± 3 dB) |
| Coverage Pattern | /43: 40° x 30° /64: 60° x 40° /66: 60° x 60° /95: 90° x 50° |
| Crossover Modes | Tri-amp / Bi-amp (passive mid-high) switchable |
| Passive Crossover | 6th order (36 dB/oct) Linkwitz-Riley HP & LP, 1.5 kHz |
| Transducer Power Rating (AES) | LF: 1600 W (6400 W peak), 2 hrs. 1200 W (4800 W peak), 100 hrs MF: 350 W (1400 W peak), 100 hrs HF: 75 W (300 W peak), 2 hrs |
| Long-Term System Power Rating (IEC) | LF: 1200 W (4800 W peak) MF/HF: 300 W (1200 W peak), 100 hrs |
| Maximum SPL | LF: 128 dB SPL (134 dB peak) MF: 137 dB SPL (143 dB peak) HF: 135 dB SPL (141 dB peak) Passive Mode: 136 dB SPL (142 dB peak) |
| System Sensitivity (1W @ 1m) | Passive Mode: 111 dB-SPL (mid/high section only) |
| Low Frequency Driver | 2 x 2206H 300 mm (12 in) driver with 100 mm (4 in) voice coil |
| Mid Frequency Driver | CMCD-82H cone midrange compression driver with integral 200 mm (8 in) diameter Differential Drive? dual 75 mm (3 in) voice coil driver |
| High Frequency Driver | 2432H, 38 mm (1.5 in) exit compression driver with 75 mm (3 in) voice coil |
| Enclosure | Trapezoidal with 12.5 degree side angles, 16 mm (.625 in) exterior grade 11-ply Finnish birch plywood. |
| Suspension Attachment | 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware (eyebolts NOT included, see optional accessories). |
| Finish | Black DuraFlex? finish. White (-WH) available upon request. |
| Optional Weather Resistant Versions | WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. WRX for direct exposure or extreme environments, such as tropical or beach, or in areas with salt air, extreme high humidity or rapid changes in temperature. |
| Grille | Powder coated 14 gauge perforated steel, zinc-phosphate dipped, foam backing (grille cloth backing on white units) |
| Input Connectors | Neutrik Speakon? NL8, plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop through. |
| Environmental Specifications | Mil-Std 810; IP-x3 per IEC529 |
| Dimensions (H x W x D in vertical orientation) | 991 x 673 x 897 mm (39.0 x 26.5 x 35.3 in) |
| Net Weight | 87.3 kg (192 lb) |
